DIP switch has been deployed reversely. ON is down, OFF is UP. If DIP switches need to be 1000 then set it to 1110. MAX DISCHARGE AND CHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS. The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.

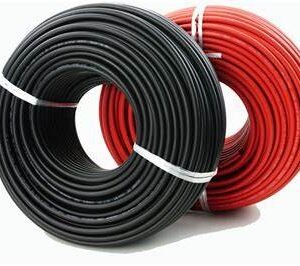

At Sun Energy Power, we supply high-quality solar components that meet industry standards for safety, performance, and durability. Our Solar DC Cables are designed to deliver reliable performance, helping you maximise the efficiency and lifespan of your solar energy system.
Power your solar installation with premium-quality Solar DC Cables built for performance, safety, and reliability.
At Sun Energy Power, we supply premium-quality solar mounting accessories that meet high industry standards for strength, durability, and reliability. Our Solar Roof Hooks are designed to provide a safe and stable foundation for your solar panels, ensuring your system performs efficiently for many years.
The Sunsynk Battery LFP Wall Mount 10.65kWh 51.2V is made up of Lithium Ion phosphate rechargeable batteries rated at 51.2V with 10.65kWh capacity. In addition, the unit has a built-in battery management system to ensure optimal performance at all times.
R62,900.00Original price was: R62,900.00.R58,535.00Current price is: R58,535.00.
Product Overview: The Sunsynk 10.65kWh Wall-Mount Lithium Battery is a high-capacity energy storage solution designed for residential and commercial solar systems. It provides reliable backup power, efficient energy storage, and long-lasting performance in a space-saving wall-mounted design.
This battery module consists of Lithium Ion phosphate rechargeable batteries with 5.32kWh capacity rated at 51.2V 104Ah with a built-in battery management system. Using Sunsynk batteries with your new Sunsynk inverter extends the inverter warranty to 10 years.
R20,000.00Original price was: R20,000.00.R17,400.00Current price is: R17,400.00.
Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5500W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 21.7.4A
Max.AC Current(A): 25A
Max Continuous AC Pass-through(A): 35A.
Output Frequency and Voltage: 50Hz; 240Vac,
Grid Type: THD<3%(Linear load<1.5%).
Current Harmonic Distortion: THD<3% (Linear load<1.5%). Efficiency Max. Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90% Protection PV Arc Fault Detection: Integrated (Except European Type) PV Input Lightning Protection: Integrated Anti -islanding Protection: Integrated PV String Input Reverse Polarity Protection: Integrated Insulation Resistor Detection: Integrated Residual Current Monitoring Unit: Integrated Output over Current Protection: Integrated Output Shorted Protection: Integrated Output over Voltage Protection: Integrated Certifications and Standards Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 Safety Regulation: IEC62109-1, IEC62109-2 EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B General Data Operating Temperature Range ( C ): -25?60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 20.5
Size (mm): 580 X 330 X 208mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years
Product Overview: The Sunsynk 12kW 3-Phase Hybrid Inverter is a powerful and intelligent energy solution designed for commercial properties, large homes, and industrial applications. It seamlessly integrates solar power, battery storage, and grid supply, delivering reliable energy management, high efficiency, and uninterrupted power during outages.
